| Quantity: | |
|---|---|

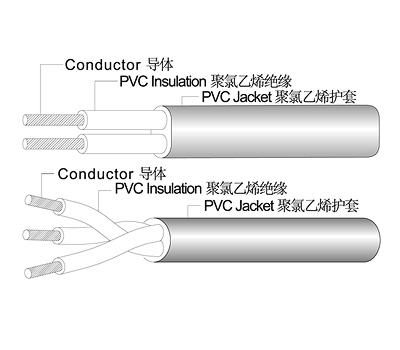

UC 60227IEC 53(RVV) 300/500V Power Cord |
● Conductor use stranded bare copper wire |
application: |
● Power supply line for small indoor appliances, home appliances, etc. |
Conductor | Insulation | Jacket | Maximum Conductor | ||||
conductor | insulation | jacket | |||||
Area | No. /mm | Dia. | Nom. Thick. | Nom. Dia. | Nom. Thick. | Overall Dia. | |
Cross-sectional area mm2 | Number of wires/wire diameter | Outer diameter mm | Insulation thickness mm | Core wire diameter mm | Sheath thickness mm | Finished outer diameter mm | |
2X0.75 | 24/0.20 | 1.13 | 0.60 | 2.26 | 0.80 | 4.1X6.5 | 26.0 |
2X0.75 | 24/0.20 | 1.13 | 0.60 | 2.35 | 0.80 | 6.5 | 26.0 |
3X0.75 | 24/0.20 | 1.13 | 0.60 | 2.35 | 0.80 | 6.7 | 26.0 |
3X1.00 | 32/0.20 | 1.30 | 0.60 | 2.45 | 0.80 | 7.1 | 19.5 |
3X1.50 | 30/0.254 | 1.60 | 0.70 | 3.00 | 0.80 | 8.3 | 13.3 |
4X0.75 | 24/0.20 | 1.13 | 0.60 | 2.35 | 0.80 | 7.6 | 26.0 |
UC 60227IEC 53(RVV) 300/500V Power Cord |
● Conductor use stranded bare copper wire |
application: |
● Power supply line for small indoor appliances, home appliances, etc. |
Conductor | Insulation | Jacket | Maximum Conductor | ||||
conductor | insulation | jacket | |||||
Area | No. /mm | Dia. | Nom. Thick. | Nom. Dia. | Nom. Thick. | Overall Dia. | |
Cross-sectional area mm2 | Number of wires/wire diameter | Outer diameter mm | Insulation thickness mm | Core wire diameter mm | Sheath thickness mm | Finished outer diameter mm | |
2X0.75 | 24/0.20 | 1.13 | 0.60 | 2.26 | 0.80 | 4.1X6.5 | 26.0 |
2X0.75 | 24/0.20 | 1.13 | 0.60 | 2.35 | 0.80 | 6.5 | 26.0 |
3X0.75 | 24/0.20 | 1.13 | 0.60 | 2.35 | 0.80 | 6.7 | 26.0 |
3X1.00 | 32/0.20 | 1.30 | 0.60 | 2.45 | 0.80 | 7.1 | 19.5 |
3X1.50 | 30/0.254 | 1.60 | 0.70 | 3.00 | 0.80 | 8.3 | 13.3 |
4X0.75 | 24/0.20 | 1.13 | 0.60 | 2.35 | 0.80 | 7.6 | 26.0 |
