illustrate: |

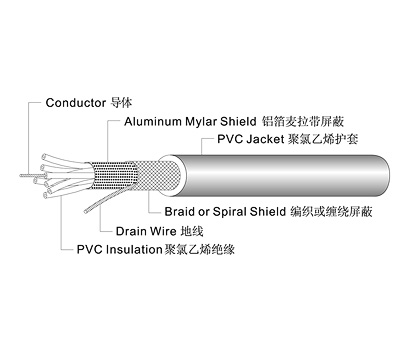

● Conductor use stranded bare copper or tinned copper wire |
application: |
● Used for internal or external wiring of Class 2 systems and audio-visual electronic equipment |
Cores | Conductor | Insulation | Drain wire | Overall shield | Jacket | Maximum Conductor | ||||
conductor | insulation | ground wire | outer shield | jacket | ||||||
AWG | No. /mm | Nom. Thick. | Nom. Dia. | No. /mm | Material | Spiral/winding | Nom. Thick. | Nom. Dia. | ||
No. /mm | ||||||||||
Number of cores | wire gauge | Number of wires/wire diameter | Insulation thickness mm | Outer diameter mm | Number of wires/wire diameter | Material | Braid/Weaving | Thickness mm | Outer diameter mm | |
No. /No. /mm | ||||||||||
2 | 30 | 7/0.10 | 0.25 | 0.80 | — | — | 45/0.10 | 0.50 | 2.7 ± 0.10 | 354.0 |
2 | 28 | 19/0.08 | 0.15 | 0.70 | — | — | — | 0.40 | 2.2 ± 0.10 | 220.0 |
4 | 30 | 7/0.10 | 0.25 | 0.80 | — | — | 59/0.10 | 0.39 | 2.9 ± 0.10 | 354.0 |
4 | 26 | 7/0.16 | 0.26 | 1.00 | — | AL | 16/5/0.12 | 0.87 | 5.0 ± 0.15 | 139.0 |
8 | 30 | 7/0.10 | 0.13 | 0.56 | — | AL | 58/0.1 | 0.70 | 3.5 ± 0.10 | 354.0 |
11 | 28 | 7/0.127 | 0.22 | 0.82 | 7/0.16 | AL | 16/7/0.12 | 0.60 | 5.2 ± 0.15 | 223.0 |
11 | 28 | 7/0.127 | 0.14 | 0.66 | — | — | 16/6/0.12 | 0.38 | 3.65 ± 0.10 | 223.0 |
13 | 28 | 7/0.127 | 0.14 | 0.66 | 7/0.127 | AL | 16/5/0.12 | 0.53 | 4.5 ± 0.15 | 223.0 |
