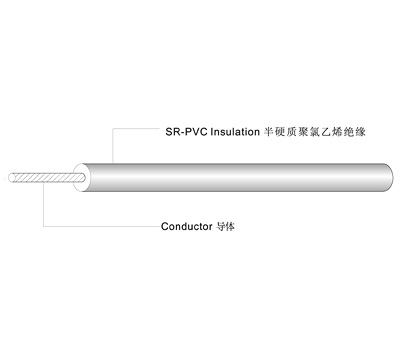

80℃ 300V PVC electronic wire UL 1061

● Use single or stranded 30-16AWG bare copper or tinned copper wire for conductor
● Semi-rigid lead-free PVC insulation
● Rated temperature: 80℃ Rated voltage: 300 Volt
● Pass UL VW-1 and CSA FT1 vertical flame test
● Standard: UL758, UL1581 and CSA C22.2 No.210.2
● Uniform insulation thickness, easy to peel and cut

application:

● It is used for internal wiring of electronic and electrical equipment. If mechanical action will cause wear and tear, it needs to be properly protected.

conductor

insulation

standard length

AWG

No. /mm

Dia.

Nom. Thick.

Nom. Dia.

ft/coil

M/coil

wire gauge

Number of wires/wire diameter

Outer diameter mm

Insulation thickness mm

Outer diameter mm

Imperial

Metric

30

7/0.10

0.30

0.23

0.80 ± 0.05

2000

610

354.24

28

7/0.127

0.39

0.23

0.90 ± 0.05

2000

610

223.75

26

7/0.16

0.49

0.23

1.00 ± 0.05

2000

610

139.73

24

11/0.16

0.61

0.23

1.10 ± 0.10

2000

610

88.89

22

17/0.16

0.76

0.23

1.30 ± 0.10

2000

610

57.52

20

26/0.16

0.94

0.23

1.45 ± 0.10

2000

610

37.61

18

41/0.16

1.18

0.23

1.70 ± 0.10

2000

610

23.85

16

26/0.254

1.49

0.23

2.00 ± 0.10

2000

610

15.06
