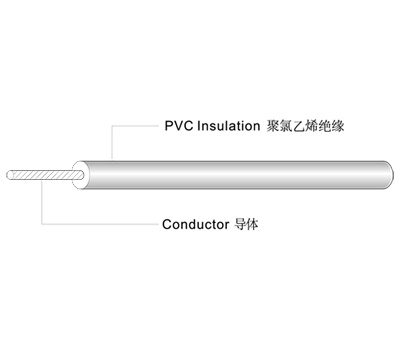

80℃ 300V PVC electronic wire UL 1007

● Use single or stranded 32-16AWG bare copper or tinned copper wire for conductor
● Lead-free PVC insulation
● Rated temperature: 80℃ Rated voltage: 300 Volt
● Pass UL VW-1 and CSA FT1 vertical flame test
● Standard: UL758, UL1581 CSA C22.2 No.210.2

application:

● Used for internal wiring of electronic and electrical equipment

conductor

insulation

standard length

AWG

No. /mm

Dia.

Nom. Thick.

Nom. Dia.

ft/coil

M/coil

wire gauge

Number of wires/wire diameter

Outer diameter mm

Insulation thickness mm

Outer diameter mm

Imperial

Metric

30

7/0.10

0.30

0.38

1.10 ± 0.10

2000

610

354.24

28

7/0.127

0.39

0.38

1.20 ± 0.10

2000

610

223.75

26

7/0.16

0.49

0.38

1.30 ± 0.10

2000

610

139.73

24

11/0.16

0.61

0.38

1.40 ± 0.10

2000

610

88.89

22

17/0.16

0.76

0.38

1.60 ± 0.10

2000

610

57.52

20

26/0.16

0.94

0.38

1.75 ± 0.10

2000

610

37.61

18

41/0.16

1.18

0.38

2.00 ± 0.10

2000

610

23.85

16

26/0.254

1.49

0.38

2.30 ± 0.10

2000

610

15.06
