illustrate: |

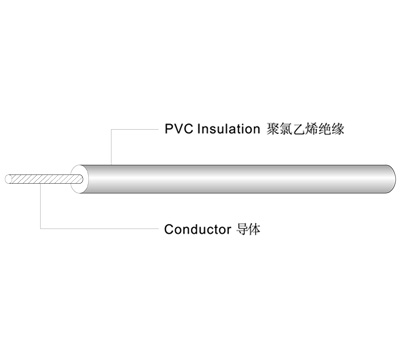

● Use single or stranded 30-3/0AWG bare copper or tinned copper wire for conductor |
application: |
● Used for internal wiring of electronic and electrical equipment |
Conductor | Insulation | Standard Put-up | Maximum Conductor | ||||
conductor | insulation | standard length | |||||
AWG | No. /mm | Dia. | Nom. Thick. | Nom. Dia. | ft/coil | M/coil | |
wire gauge | Number of wires/wire diameter | Outer diameter mm | Insulation thickness mm | Outer diameter mm | Imperial | Metric | |
26 | 7/0.16 | 0.49 | 0.76 | 2.05 ± 0.10 | 2000 | 610 | 139.73 |
24 | 11/0.16 | 0.61 | 0.76 | 2.20 ± 0.10 | 2000 | 610 | 88.89 |
22 | 17/0.16 | 0.76 | 0.76 | 2.30 ± 0.10 | 2000 | 610 | 57.52 |
20 | 26/0.16 | 0.94 | 0.76 | 2.50 ± 0.10 | 2000 | 610 | 37.61 |
18 | 16/0.254 | 1.18 | 0.76 | 2.75 ± 0.10 | 2000 | 610 | 23.85 |
16 | 26/0.254 | 1.49 | 0.76 | 3.05 ± 0.10 | 1000 | 305 | 15.06 |
14 | 41/0.254 | 1.87 | 0.76 | 3.40 ± 0.10 | 1000 | 305 | 9.46 |
12 | 65/0.254 | 2.36 | 0.76 | 3.90 ± 0.10 | 1000 | 305 | 6.30 |
10 | 105/0.254 | 3.00 | 0.76 | 4.60 ± 0.15 | 1000 | 305 | 4.13 |
